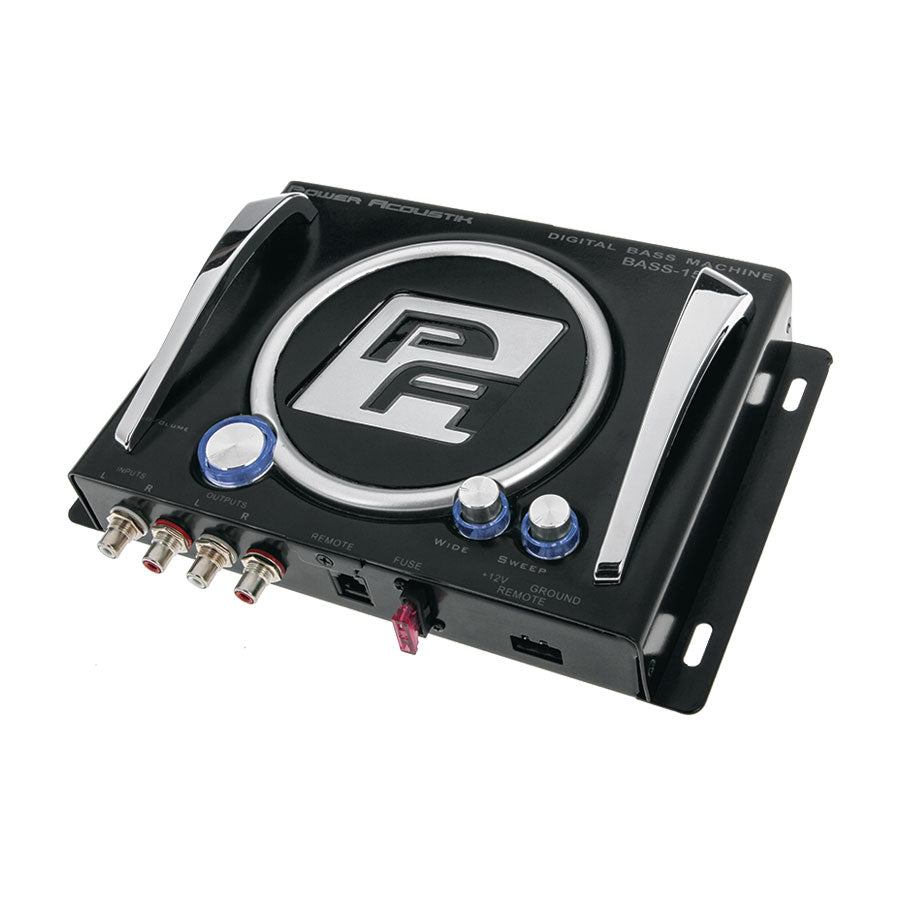

BASS-15C

Digital Bass Reconstruction Maximizer

Category:

They say music soothes the soul, but poor control on your system can kill the harmonics of a beautiful song or road-trip. If you want to extend great-sounding music from your source to your amps, then get yourself a Power Acoustik Digital Bass Reconstruction Processor.

The BASS-15C digitally maximizes the ultra-low bass on all types of recorded material. The processor detects bass harmonics, then digitally recreates the original essentials for the incredible punch and impact of live music. Basically, you get more bass!



Variable Frequency Boost Control
The sweep control allows you to dial-in on a target frequency to boost, from 27-63Hz. The width control can be adjusted to increase the range of frequencies.

Variable Subsonic Crossover
Filter out the frequencies your subwoofers can’t play via a 35-80Hz variable 12dB subsonic crossover. The crossover adjustment is conveniently located on the remote gain control.

Remote Gain Control
The remote gain control can adjust the output level and subsonic crossover from a more convenient location in the vehicle. The module includes an LED indicating the level setting.



Features:

  • PWM High Head Room Power Supply
  • 27-63Hz Parametric Bass Boost
  • Variable Bandwidth Adjustment
  • Max Output Level: 13.5 volt
  • Dash Mount Remote Control
  • LED MAX Bass Indicators
  • Selectable Subsonic Filter
  • Balanced RCA Inputs
  • Selectable Input Ground Sources
  • Selectable Grounding Isolation
  • Frequency Response: 10~100kHz
  • THD: 0.003%
  • S/N Ratio: 130dB
  • Input Noise Rejection: 60 dB

Specifications

Input Connection Type: RCA
Output Connection Type: RCA
Maximum Output Voltage: 13.5 volts
Frequency Response: 10 – 100 Hz
Signal-to-Noise Ratio: 130 dB
Total Harmonic Distortion (THD): 0.003%
