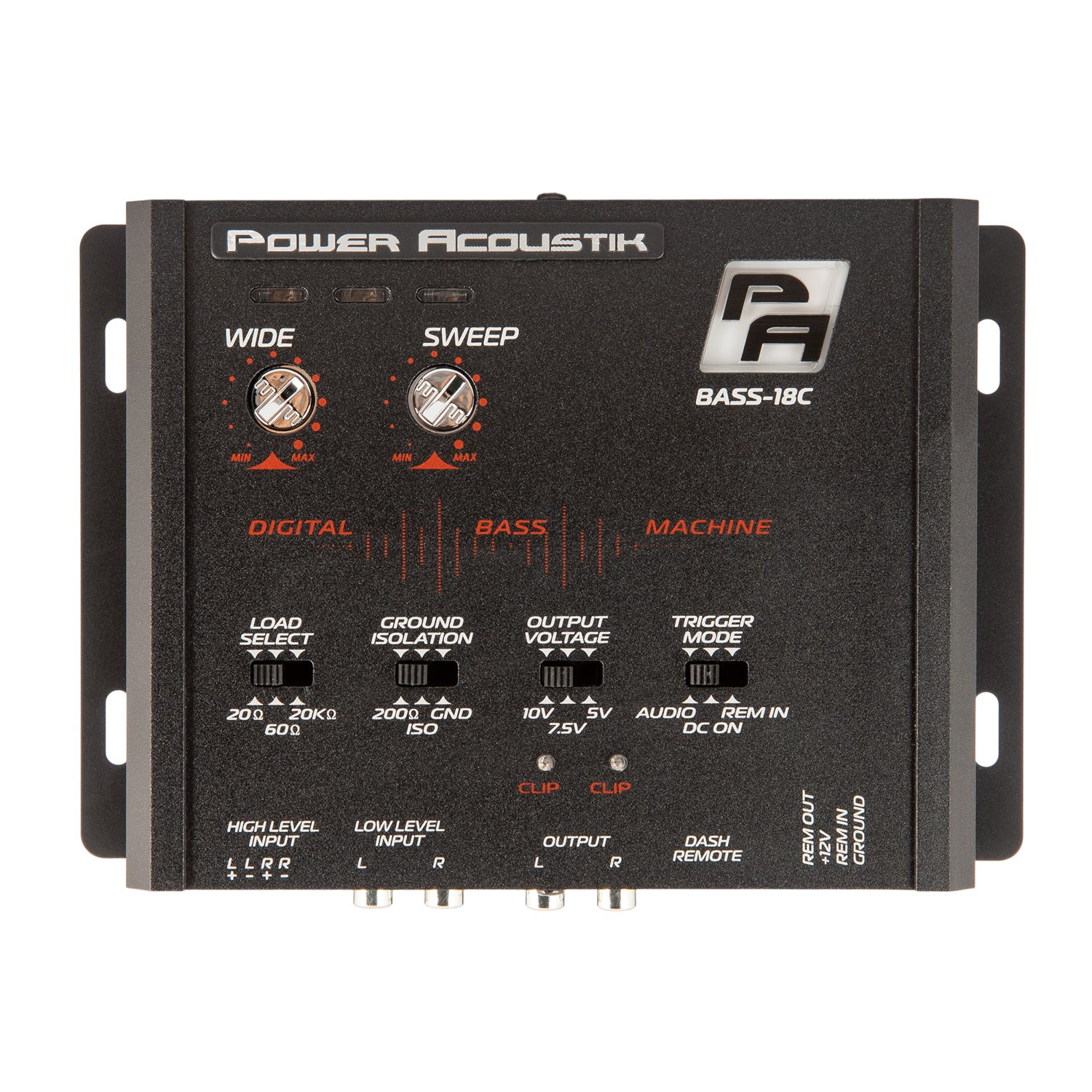

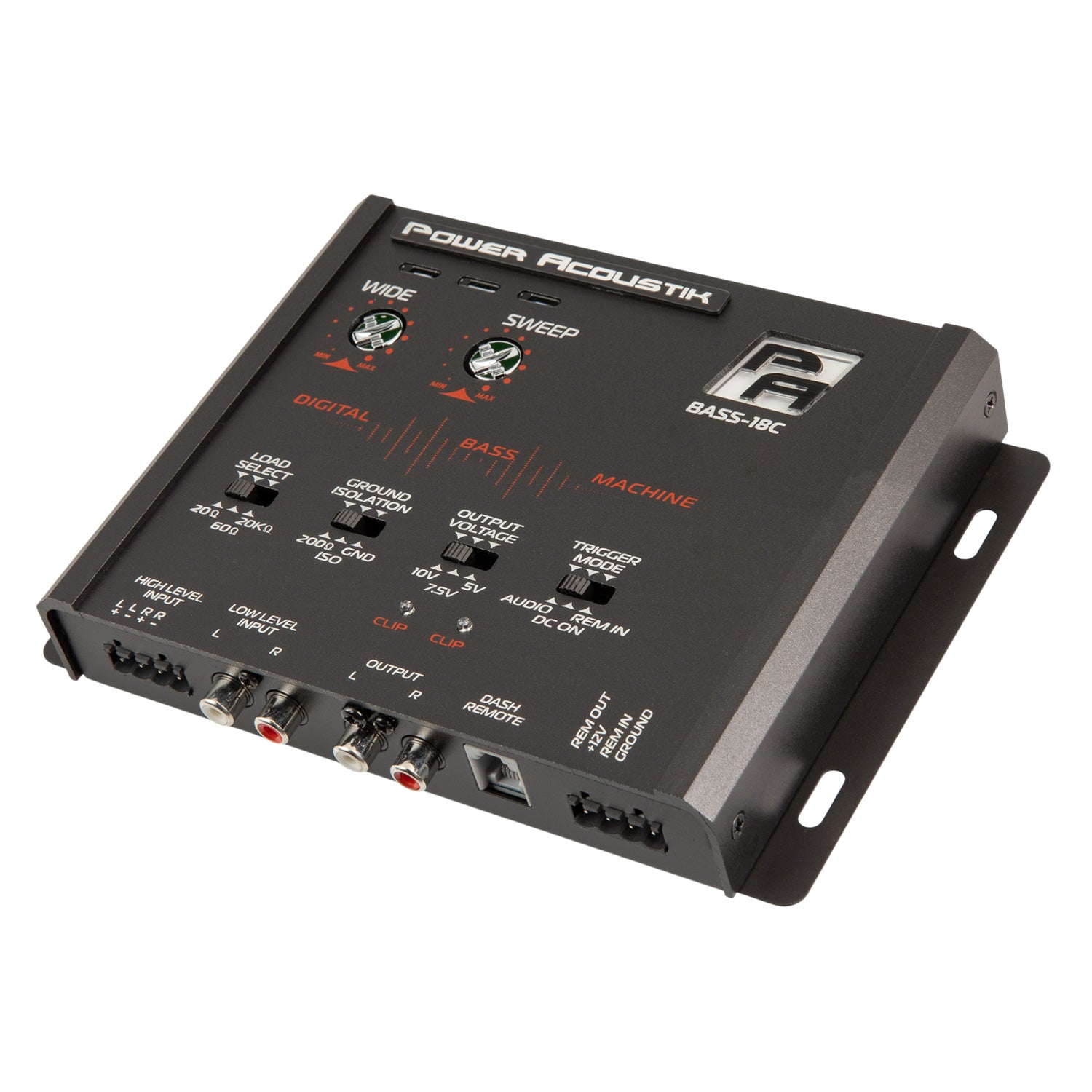

BASS-18C | Bass Restoration Processor
For those who want the most out of their car audio system, quality sound processing is a must. With just a few adjustments, the Power Acoustik BASS-18C can make your system sound like it’s been tuned by audio professionals. Designed to restore and enhance low-frequency harmonics often removed from modern music recordings, the BASS-18C unlocks the best bass response from any setup.
Power Acoustik BASS‑18C - Bass Restoration Processor
Take your car audio system to the next level with the Power Acoustik BASS-18C Bass Restoration Processor. Today’s compressed music files often lack the deep bass found in original recordings. The BASS-18C solves this by restoring those missing low-frequency harmonics, delivering fuller, richer sound that feels professionally tuned.
The onboard Bass Equalizer gives you full control of your system’s low end. Simply select the frequency to boost, then fine-tune the Q/width to increase harmonics around it — creating the exact bass response you want. Perfect for adding impact to subwoofers, the BASS-18C is commonly installed in-line before subwoofer amplifiers for maximum effect.
Convenience and control are at your fingertips with the dash-mount remote, which features variable subsonic filtering and bass level adjustment. Installation is flexible thanks to high-level speaker inputs and low-level RCA inputs, plus a 10V max RCA output to feed amplifiers. Added features like LED clipping indicators, load matching and ground isolation, and 12V turn-on output make the BASS-18C adaptable to a wide range of systems.
With high-fidelity specs including 0.03% THD, >105 dB S/N ratio, and 10 Hz – 22 kHz ±1 dB frequency response, this processor ensures clean, accurate sound. Compact at 7.5”L x 5.5”D x 1.25”H, the BASS-18C installs easily in almost any system while pulling just 300 mA of current. Unlock the hidden depth in your music and hear bass the way it was meant to be with the BASS-18C.
• Bass Restoration Processor Adds Impact to Music w/ Insufficient Low Octave Levels
• Variable Frequency Sweep & Variable Center Frequency Q/Width

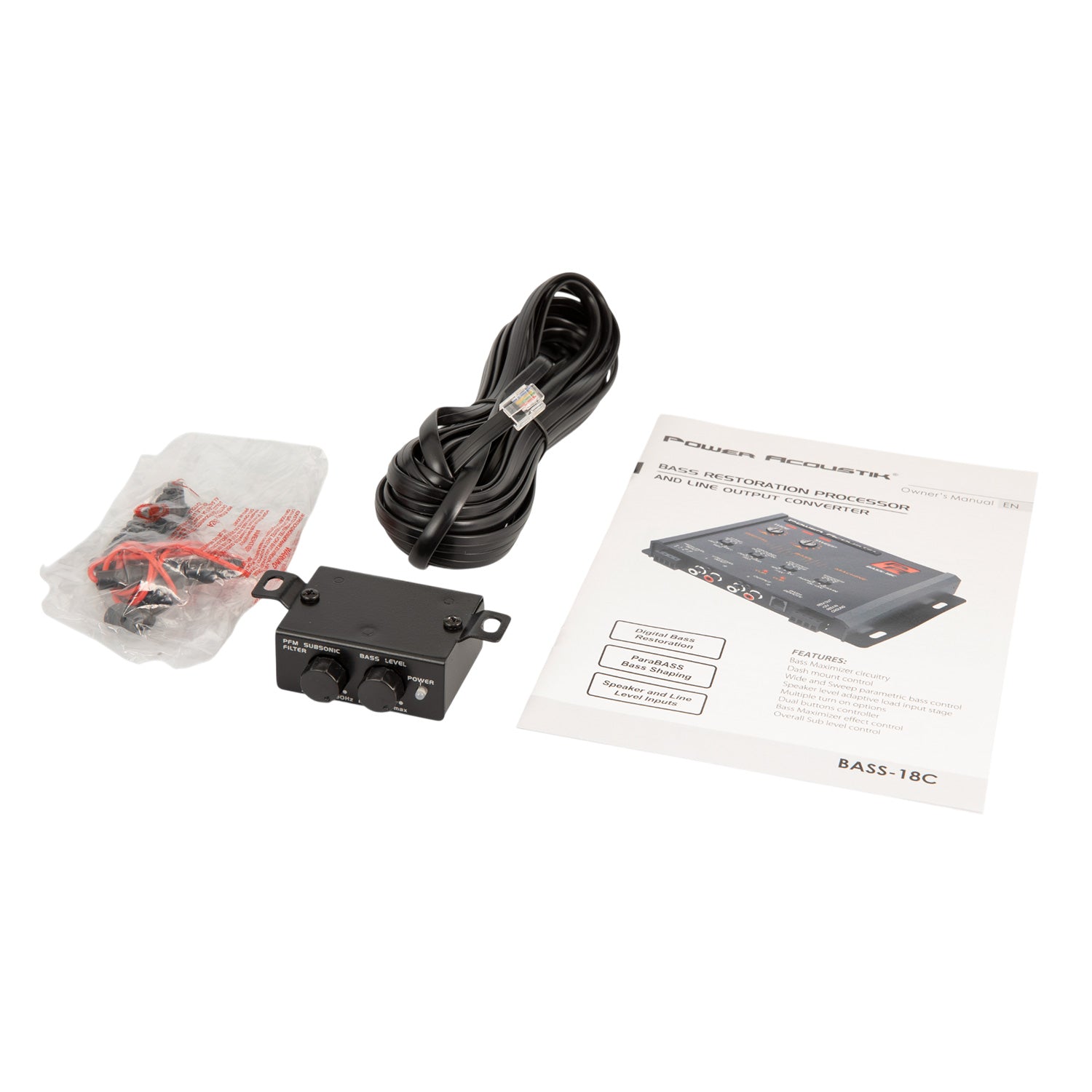

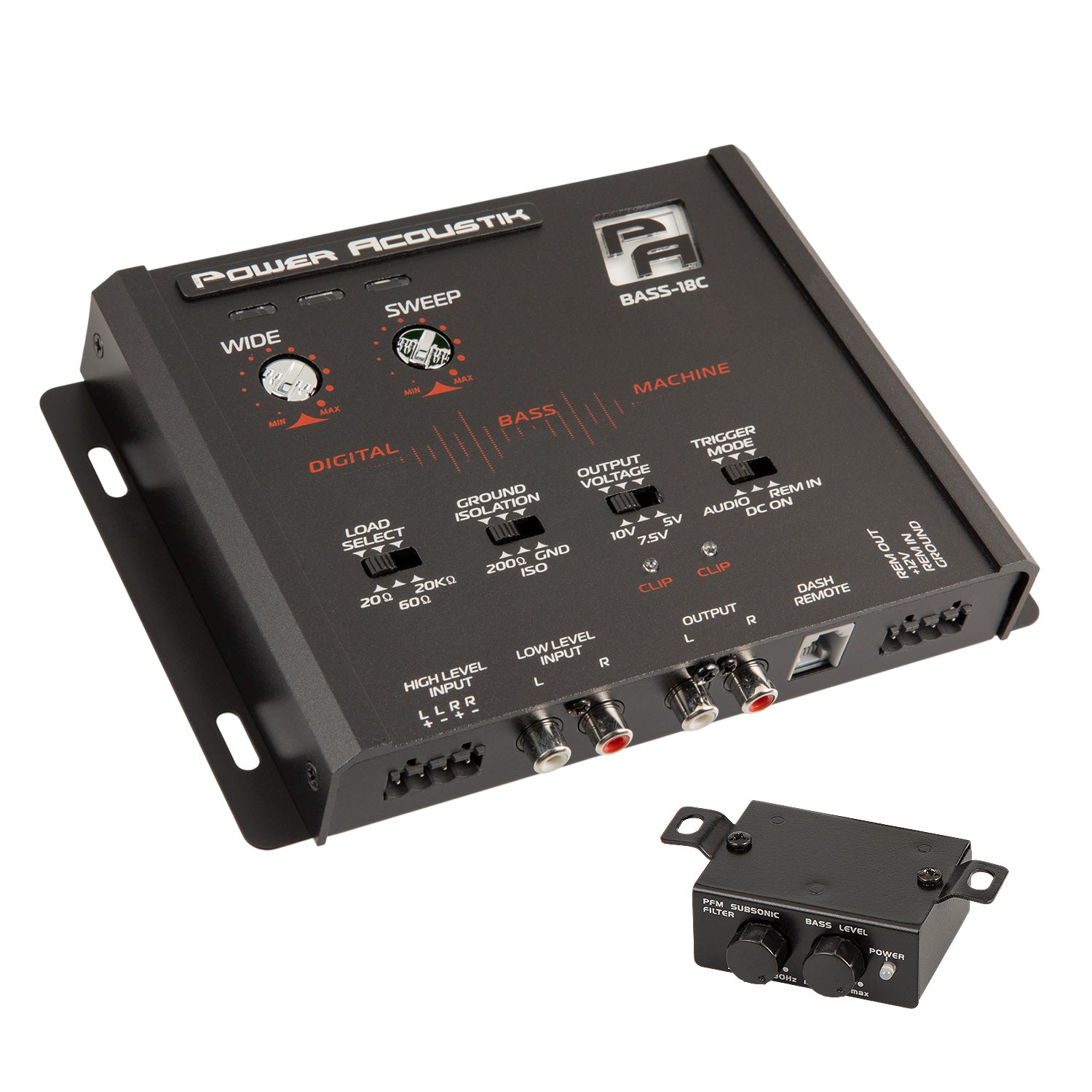

• Dash Mount Remote Control with Variable Subsonic Filter & Bass Level Adjustment

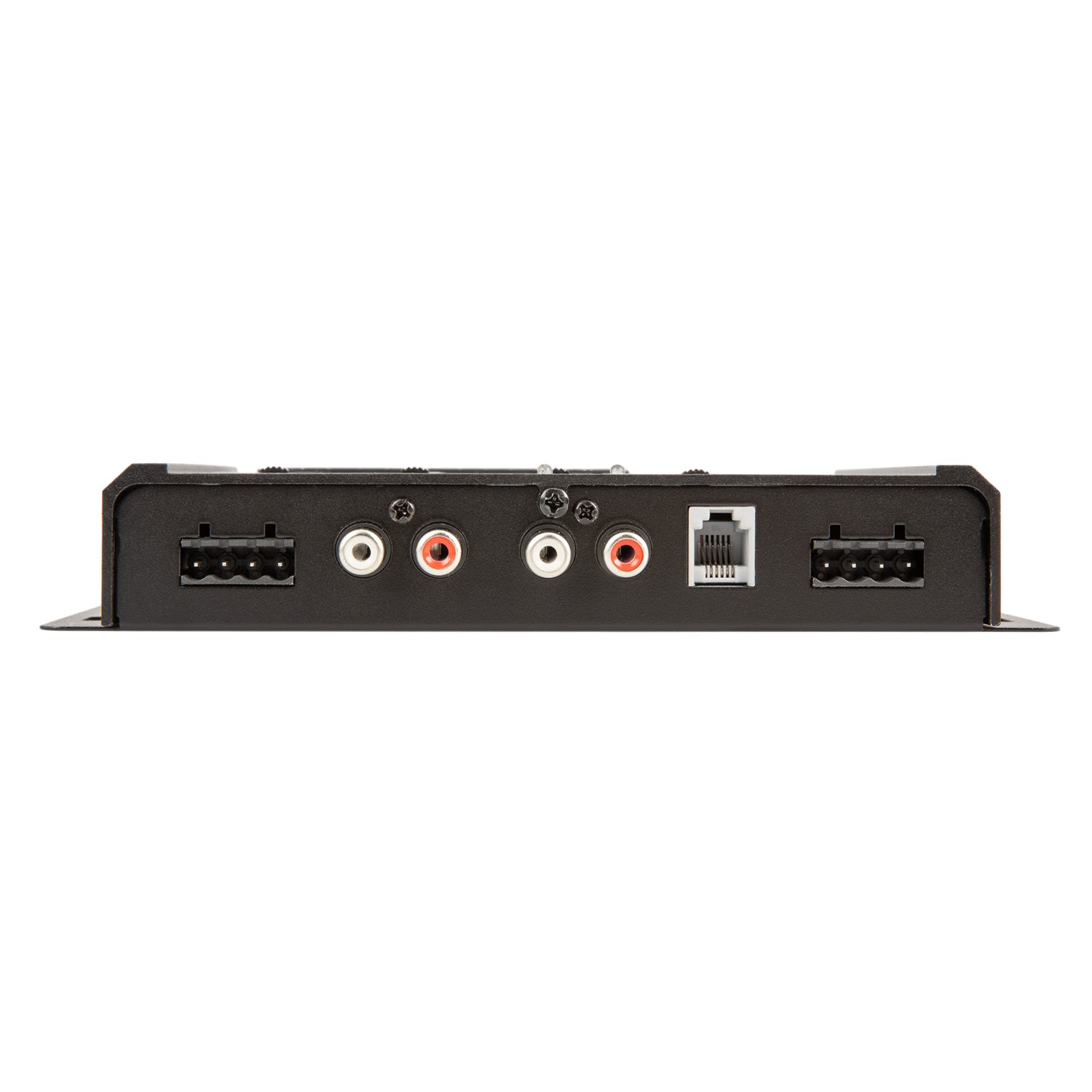

• 2ch. Stereo Speaker/High Level or Low Level RCA Input
• 10V MAX 2-Ch./Stereo Low Level RCA Output
• LED Audio Clipping Indicators
• Load Matching & Ground Isolation for Diverse Audio Systems
• Turn-on by Remote Input from Aftermarket Head Unit or Audio Signal Sensing
• 12V Turn-on Output for Audio Amplifiers
Total Harmonic Distortion: 0.03%
Signal to Noise Ratio: >105 dB
Frequency Response: 10 Hz – 22 kHz ±1 dB
Current Draw: 300 mA
Recommended Fuse Rating: 1A

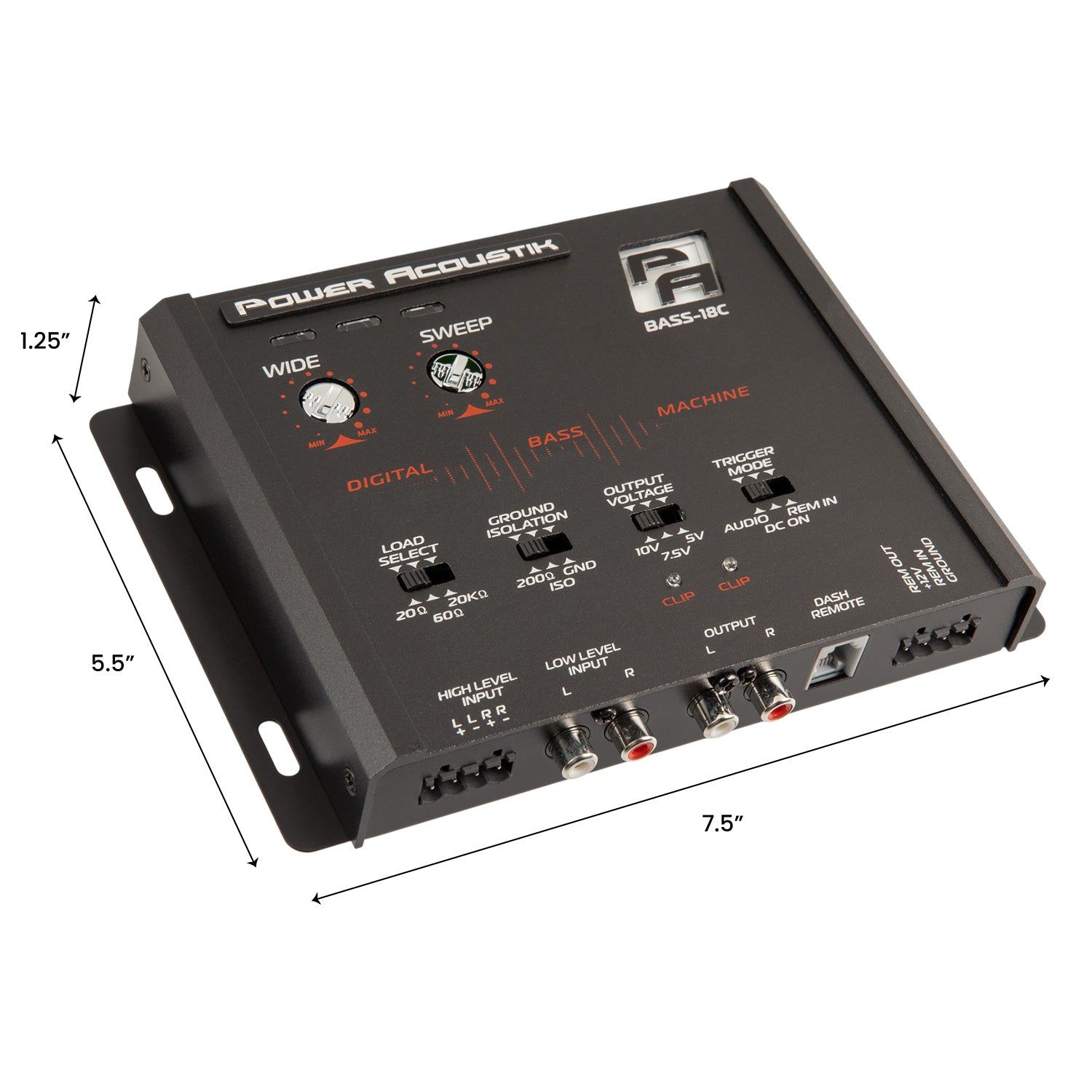

Dimensions: 7.5”L x 5.5”D x 1.25”H
