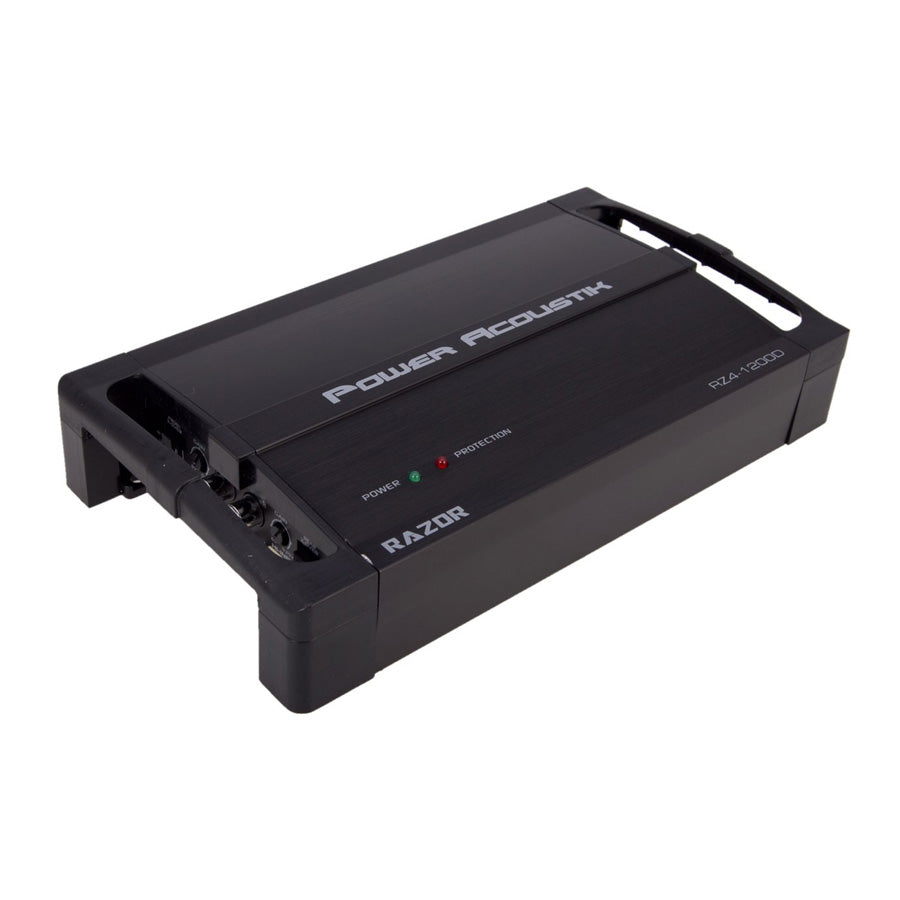

RZ4-1200D | 1200W Class D 4 Channel Amplifier
RAZOR Series 4 Channel Amplifier
Max Power | 1,200 Watts |
RMS Bridged @ 4Ω | 300W x 2 |
RMS Power @ 2Ω | 150W x 4 |
RMS Power @ 4Ω | 100W x 4 |
Dimensions (4.75″w x 1.625″h) | 9″ |
Power Acoustik RZ4‑1200D Razor Series – 4-Channel Compact Class D Amplifier, Built for Tight Spaces and Clean Sound
The Power Acoustik RZ4‑1200D delivers full-range signal performance in a footprint designed to fit tight installs without compromising output. As part of the Razor Series, this Class D 4-channel amplifier offers high-efficiency power delivery and intelligent signal sensing—making it an ideal solution for modern factory integrations and stealth builds.
Compact Chassis. Full-System Coverage.
Rated at 1200 watts peak and 600 watts total RMS, the RZ4‑1200D supports a range of system layouts:
- 100W x 4 @ 4Ω – for full-range speakers
- 150W x 4 @ 2Ω – for component systems or higher-load applications
- 300W x 2 bridged @ 4Ω – for small subwoofers or midbass drivers
Whether you're wiring door speakers or building a compact 4-way system, this amp brings the muscle with minimal draw and heat.
Built to Connect with Simplicity
Designed for seamless integration, the RZ4‑1200D features high-level speaker inputs with signal-sensing auto turn-on, eliminating the need for a separate remote wire when connected to OEM head units. Low-level RCA inputs (0.25V–6V) support clean signal paths from aftermarket sources.
Switchable crossover modes allow you to tailor your output with fixed high-pass/low-pass filters at 80Hz, while short-circuit, thermal, and overload protection circuits maintain system reliability under stress.
Technical Overview:
- 4-channel Class D full-range amplifier
- 1200W max / 600W RMS
- 100W x 4 @ 4Ω, 150W x 4 @ 2Ω, 300W x 2 @ 4Ω bridged
- MOSFET power supply, SMT circuit board
- Signal-sensing auto turn-on via high-level input
- Low-level RCA input (0.25–6V)
- Fixed 80Hz crossover filters
- Compact dimensions: 9″ x 4.75″ x 1.625″
- Single 30A fuse
- 8-gauge power input, 12-gauge speaker terminals
Best Use Cases:
- Compact sedans, trucks, motorcycles, or side-by-sides where space is limited
- Factory radio integration without splicing for remote turn-on
- 4-channel stereo systems or 2-channel bridged midbass/sub setups
If you’re building a tight-space install and want reliable, efficient output from a name that delivers on spec, the RZ4‑1200D is the tool for the job.
Compact 4.75” Chassis Design for Installation Versatility
MOSFET Power Supply w/ Audiophile Grade IR Transistors
Military Grade SMT PCB Maintains Dynamic Performance
2-ohm Stereo & 4-ohm Bridged Full Range Operation
8ga Power Wire & 12ga Speaker Wire Outputs
Direct Short, Thermal, & Overload Circuits Protect Amplifier
200mv-6V Low-Level RCA Inputs
High-Level Input w/ Signal Sense Auto Turn-on
Variable 12dB High Pass & Low Pass Crossovers
10-50Hz Variable 12dB Subsonic Crossover Protects Subwoofers
